AIM Sports MXS 1.2 TFT Dash & Datalogger

     0 reviews  |  Write a review
Brands AIM Sports
Product Code: AIM-MXS1.2
Availability: Typically ships in 2-3 Days
$2,299.00


MXS 1.2, the evolution of MXS, is the dashlogger designed to acquire and display data coming from your ECU, the internal accelerometer and gyro, as well as from the GPS08 Module included in the kit, analog/digital inputs and predefined math channels. Performance and data acquired can also be incremented adding up to eight expansion modules. Its 5" display has been specifically designed for small cockpits installation.



CAN output

With the CAN Output you can send messages directly
to an existing CAN network in order to improve
the range of vehicle control possibilities.



Freely configurable pages:

You can define all the custom pages
you wish, choosing among a wide library
of page styles, defining which data
to be shown, their end of scale and measure units.
Swapping between pages can be managed
pushing one or two pushbuttons.

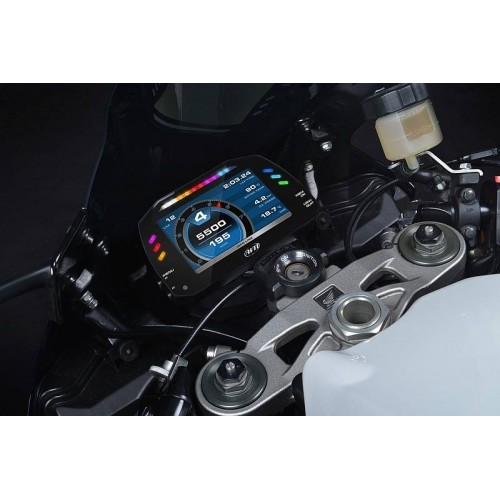

High contrast TFT display

A high contrast TFT display identifies
MXS 1.2 at the first glance.
An ambient light sensor keeps
the backlight at optimum brightness levels.



Flexible alarms

MXS 1.2 features six configurable RGB alarm LEDs: you choose the conditions, you choose the colors.
Select a solid alarm or flashing one - and the flashing frequency, choose to have an accompanying text message, and set the alarm priorities.


Two digital outputs
MXS 1.2 features two digital outputs.
The two digital outputs (Dout) are LOW SIDE type
(switch to ground): they can be configured in order
to be turned on/off depending on the value
of the analog or digital inputs.
They permit to automatically run external systems,
i.e. to switch on/off additional lights,
to activate/de-activate a cooling fan
or circulation pumps, etc. when
a certain event happens.


Camera inputs,
also for mirror camera

Two analog camera inputs are available,
to swap your display into a mirror camera,
through pushbutton command
or event management.



Integrated shift light array

Choose from a host of advanced
multicoloured RGB shift light patterns
that can be customized as you like,
and for each unique gear when required.



Expand the system, according to your needs
Using the built-in CAN bus, you can add expansion modules to the MXS to increment the performance and the data acquired:
GPS08 Module
Thanks to GPS08 Module (included in the kit) and its Race Studio 3 software, you can immediately get laptimes and all data needed for engine tuning as well as for improving riding technique.
  GPS08 Module
Channel Expansion
It permits to add 4 0-5Volt analog channels for pressure, temperature sensors and potentiometers. Two of these channels can be configured to receive digital inputs like wheel speed.
  Channel Expansion

TC Hub
It adds 4 K thermocouples.
  TC Hub
LCU-One CAN
Wide band Lambda controller LCU-One, with Bosch LSU 4.9 probe, providing all Air/Fuel data and lambda value, allows to perfectly tune the carburetion.
  LCU-One CAN
SmartyCam HD cameras
The on-board cameras that overlays on videos the data sampled by your logger.
  SmartyCam HD Rev.2
Memory Module
The Memory Module is a small SD Card holder that can be connected via CAN bus to your AiM logger in order to record the data during your tests.
  Memory Module


Connection example

These are only some of the items that can be added to our MXS 1.2 for incrementing the performance and the data acquired:


Race Studio 3,
the almighty software
Race Studio 3 is the heart of your MXS 1.2, managing all your activities related to:
Configuration
With Race Studio 3 you can create, modify, delete, import and export configurations with all channels, ECU drivers, Math channels, Display Pages, Digital outputs, Alarms, Shift Lights and all the expansions you need. You will also be able to manage the map of all your racing tracks and compare two laps watching the video recorded by SmartyCam HD cameras.
AiM LearnFast E-training Series
Check out how to use Race Studio 3 Configuration: Part 1 - Part 2


Analysis:

With Race Studio 3 you can also analyse all data recorded by MXS 1.2 and downloaded to your PC: graphs, histograms and tables will help you study your performance, providing an objective support to avoid mistakes and improve performances.

DOWNLOAD RS3




Wi-Fi connectivity

Makes it even more convenient
to configure, calibrate, and download your data
wirelessly, using a secure 802.11 WiFi
connection: no need to move your PC close
to the vehicle anymore, you can do it
from up to 50 meters away.
